Tidy Oiler

The tidiest Scottoiler installation I’ve ever done, and that’s probably because I’d only ridden the bike out of the showroom that morning…

Much inspiration was taken from AndyW’s guide, with a slight difference in feed pipe routing, plus mine’s a vSystem rather than an eSystem.

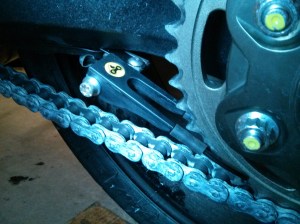

Dual Injector on a custom bracket fitted to the end bolt of the chain guide under the swing arm:Dual Injector

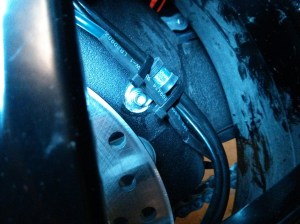

Oil feed house is routed around the inside of the swingarm to meet the brake/ABS lines…
Routing along brake hose

… and then continues with them under the guard that runs over the top of the swingarm…
Under hose cover

… and reappears in front of the hugger, to run along the swingarm…
Along swingarm

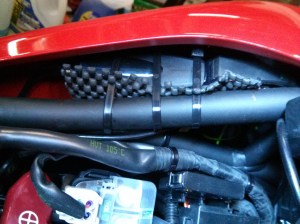

… and up behind the right panel to the oil reservoir:
Behind side panel

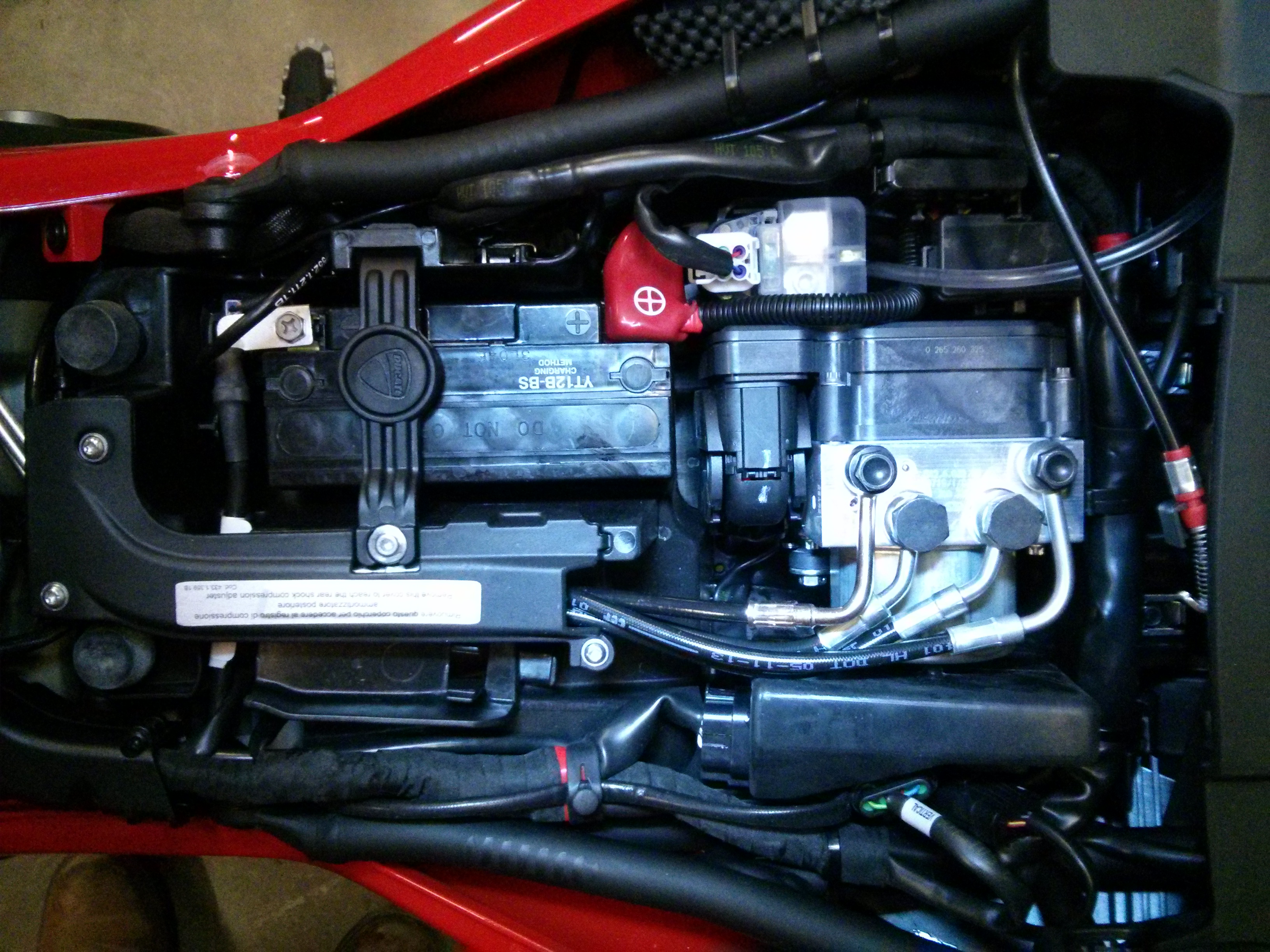

This is the view you’re met with when you remove the rider’s seat. There’s a frightening amount of stuff under there:
Scary
